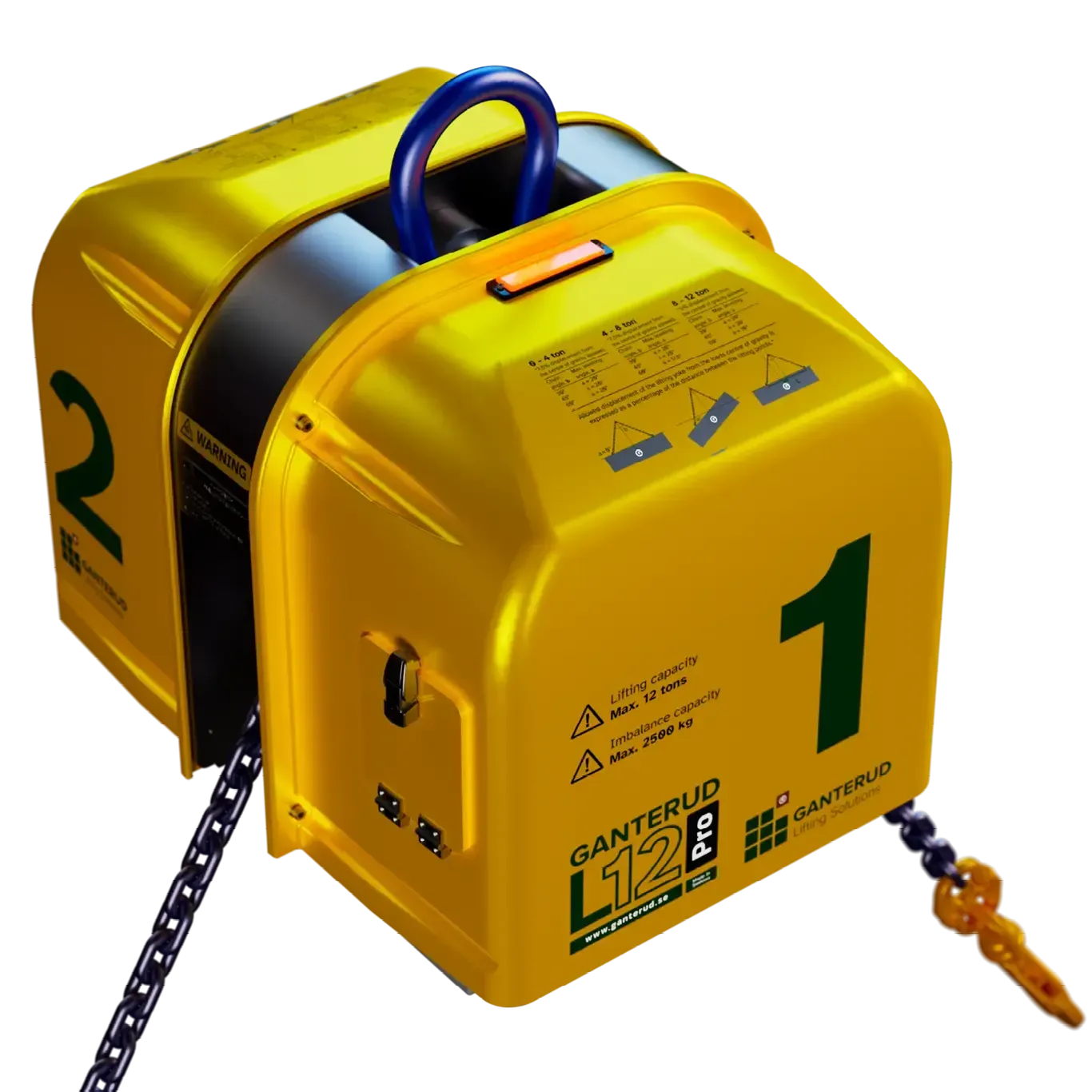

Introducing the Ganterud L12 Pro: Advanced levelling yoke for heavy-duty application
Meet the Ganterud L12 Pro, a cutting-edge levelling device combining robust technology with new application. This radio-controlled precision levelling yoke shortens installation time and boosts safety, handling loads up to 12 tonnes.
Efficient management of various loads
The GANTERUD L12 Pro levelling yoke employs innovative and established technology to manage loads with precision and safety, accommodating objects from 0 kg to 12 tonnes.
Seamless auto-levelling and rotation
The auto-levelling function easily finds the center of gravity, making lifting straightforward and safe. The snatch block function with a released chain wheel ensures quick and secure rotation of heavy objects like prefabricated concrete walls.
Precise and versatile object handling

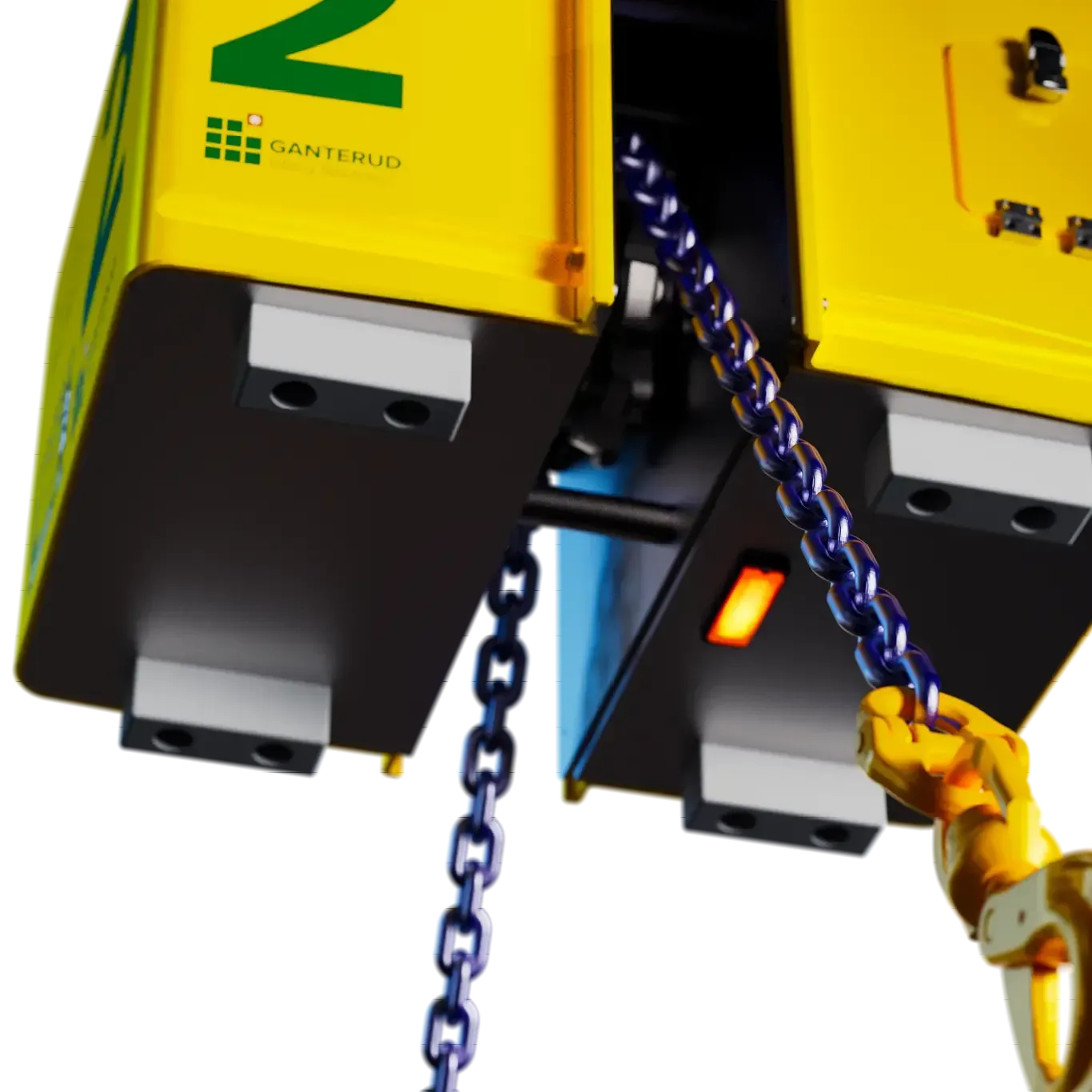

With a reversible chain up to 2 meters per hook, the GANTERUD L12 Pro offers precise and comprehensive levelling and handling for diverse objects.
Significant productivity enhancement
The GANTERUD L12 Pro boosts productivity by allowing easy and safe object levelling with a single button press, reducing crane time and minimizing waiting periods.
Reliable in harsh conditions
Thanks to its robust, tried-and-tested technology, the GANTERUD L12 Pro operates efficiently in temperatures from -20°C to +40°C, perfect for demanding environments.
Low maintenance
The sturdy casing and IP65-rated electrical system ensure ease of cleaning. Maintenance is limited to weekly battery charging, with the status displayed on the yoke
PRO FEATURES:
- Release of chain wheel with remote control.
- Snatch block function with released chain wheel.
- Flash light warning when chain wheel is released.
- Auto levelling, finds the center of gravity automatically when chain wheel is released.
Easy radio control

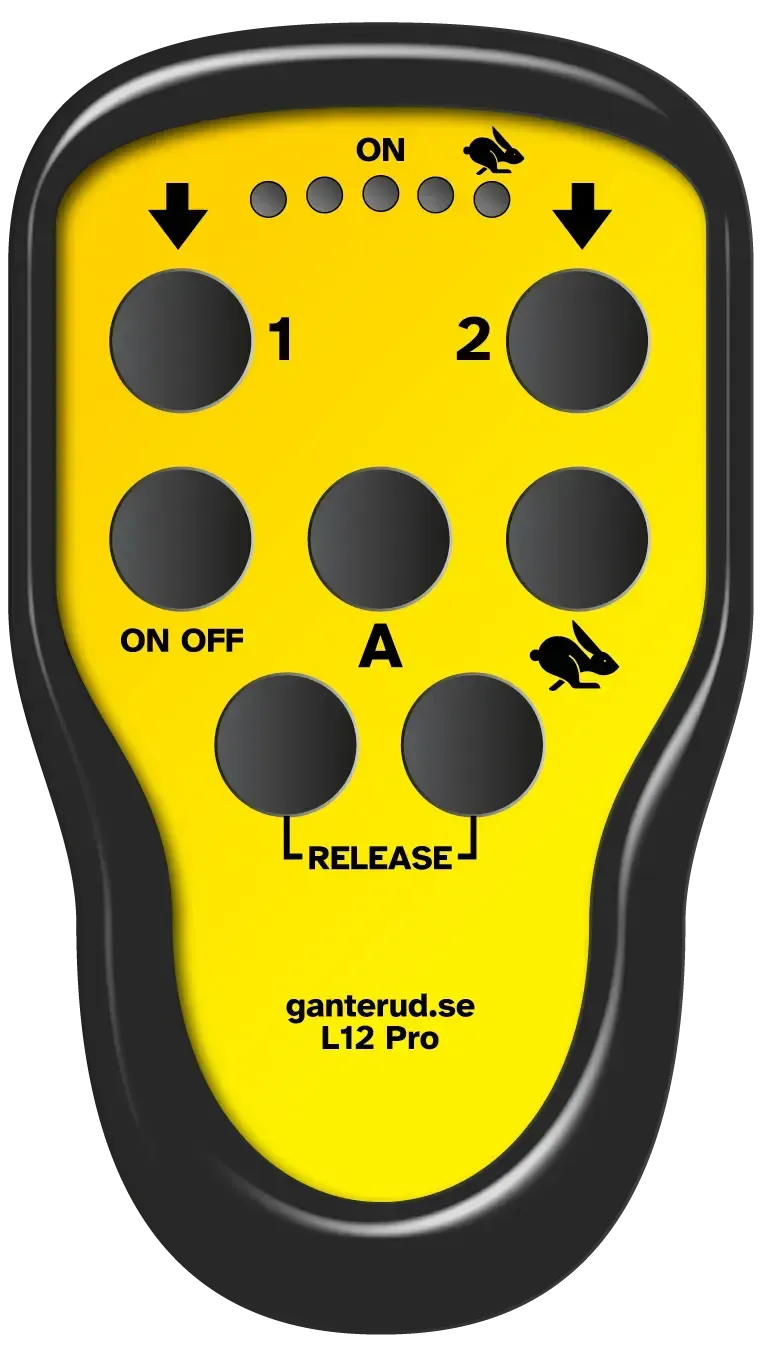

With its IP67-rated remote control, the GANTERUD L12 Pro is simple to operate, enhancing productivity and safety.
INCREASES PRODUCTIVITY RATE MANY TIMES OVER
The GANTERUD L12 Pro levels the objects it is lifting quickly and safely with the simple press of a button, reducing both expensive crane time and waiting times.
- Release of chain wheel with remote control
- Snatch block function
- Auto levelling when chain wheel is released
- Levelling light and heavy objects
- Runs on rechargeable batteries
- Sturdy, durable and reliable
- Increases productivity
- Strong and robust
- Minimal service
- Radio controled
Technical data
Lifting capacity: Max 12 metric tonnes
Load imbalance capacity: Max 2,5 tonnes
Max leveling length: 2 m
Max chain angle: 60°
Chain dimension: 48x16 mm
Total chain length: 4 m
Weight: 295 kg

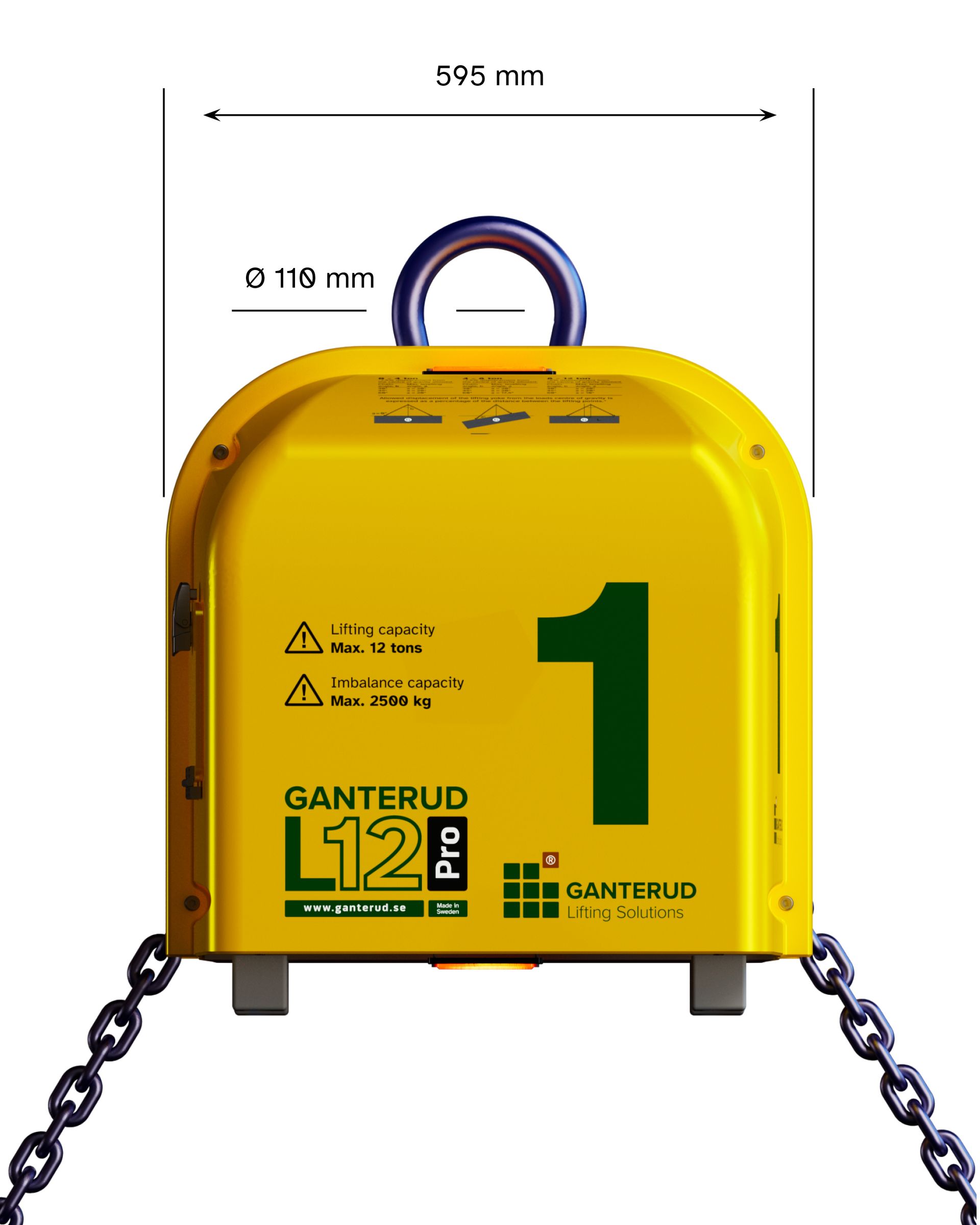

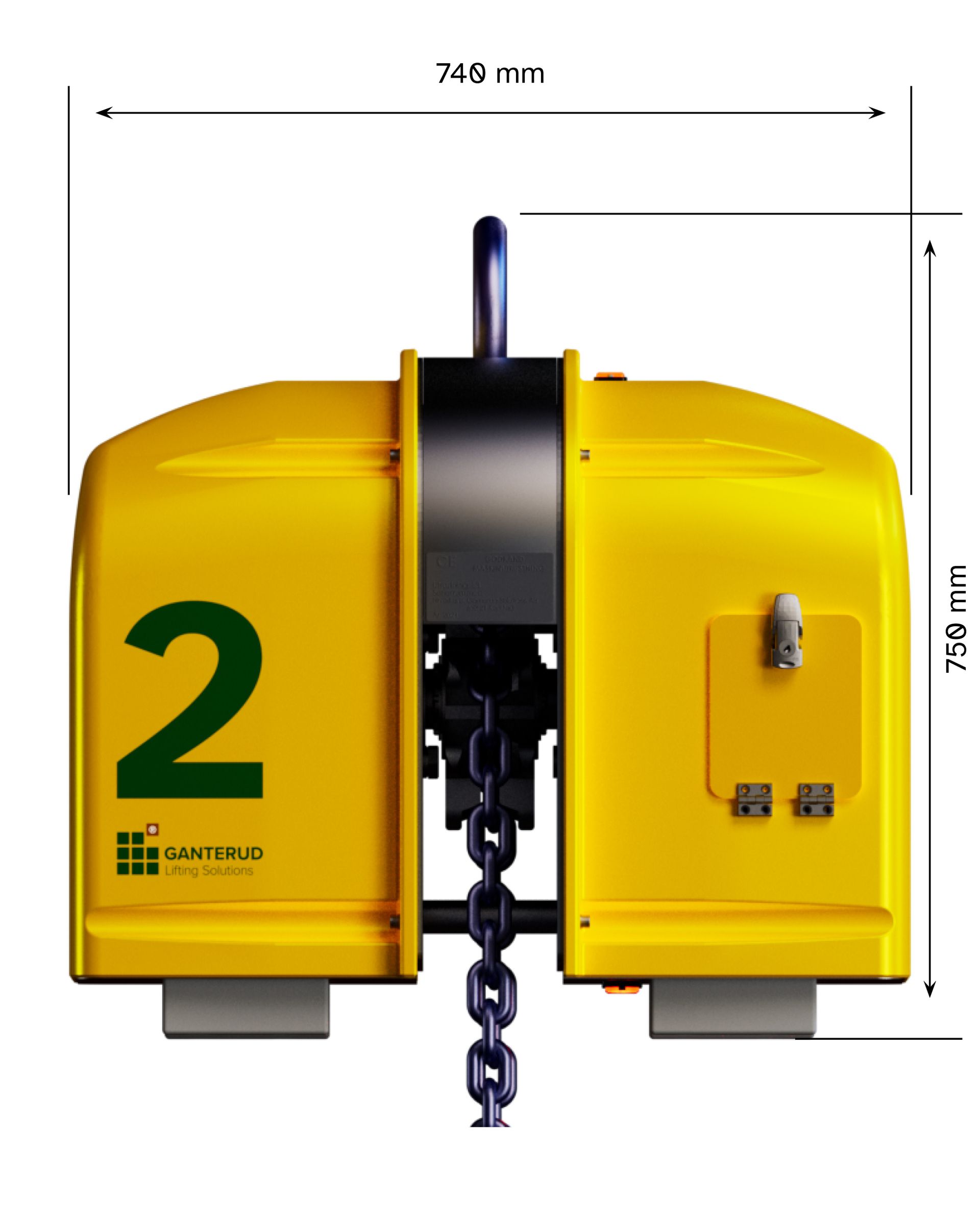

Height: 750 mm
Width: 740 mm
Depth: 595 mm
Control system
Radio range: 100 m unobstructed view
Current electrical motor: 24 VDC
Power at rest: 50 mA
Power max continuous: 24 A
Power peak: 30 A
Environmental requirements
Operating temperature: -20°c - +40°c
Storage temperature: -20°c - +45°c
Relative Humidity (RH): 0 - 90 % during storage
IP rating: Ip65
Hand - held controller
Number of function keys: 7
Power output: 10 mW
Power supply: 3x1,5v AAA
Ip rating: Ip67
CERTIFICATION
CE marked product
Optional extra equipment
Protective cover
Extended chain
Extra batteries
Transport packaging
